PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Thu Mar 04, 2010 8:42 am

Looking back a few days on the report you can see the the timing chain plate was covered in grease and grim Ive given this a good clean



Since doing this Ive re-routed the the loom, and more of less fitted the refurbed rack and pinion and LSC and refurbed the Front ARB check out the guide section great

This was the engine bay yesterday before the rack and pinion went on today.



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Fri Mar 12, 2010 5:22 am

Putting it back together

After the removal Arrow refurb Arrow refit of the LSC and Rack and Pinion (See DIY Guide section)

I refited the parts back in the car:-

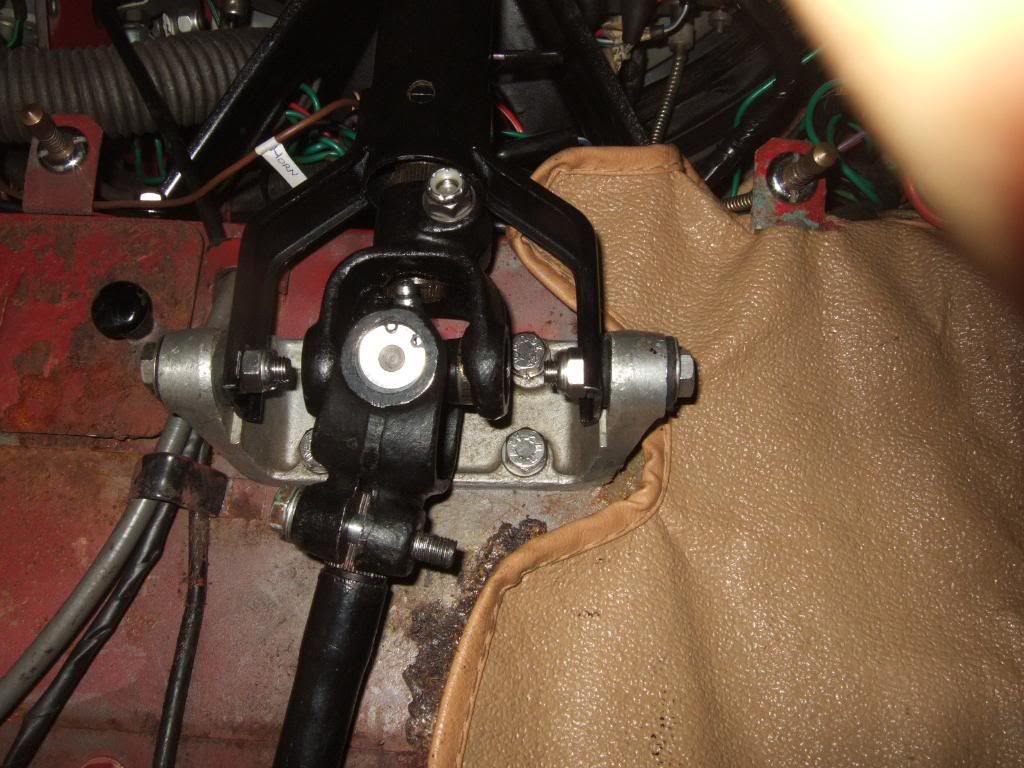

LSC connected to the USC in the cabin



Once connected I held it in place with a couple of blocks



Remember to put the earth wire on before fitting to the car good idea



Then connect the plates to the mounting brackets.



After this I fitted the ARB back in Arrow Again Refurb guide in DIY Guide section.

Next I put the Horn mounting brackets on and fitted the Horns.



Then in with my new Upgraded Fan and fan Moter form Coolcat in USA Smile



Next I put in the RHT mounting bracket, Horn Relay bracket and relay, I'm leaving the RHT off at the
minute as I need the space for engine work I have planned.

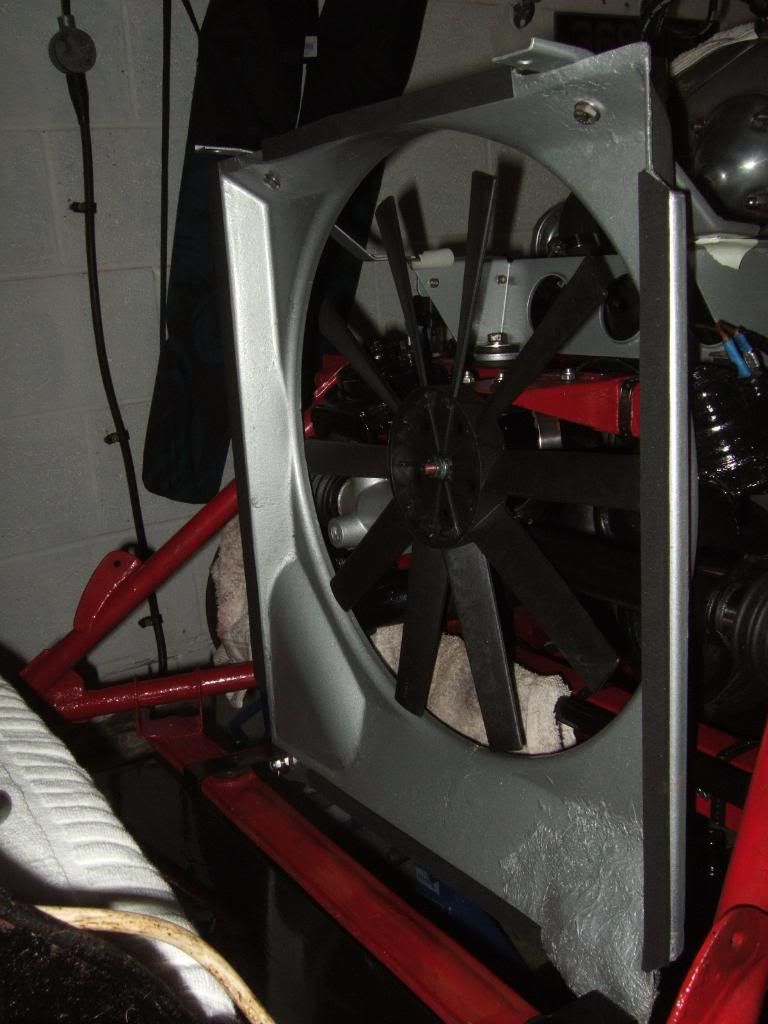

Then the Radiator Cowl went in secure all the bolts everywhere and making sure it is in the correct order by the U Bracket
which goes uder the rad.



Only do up one side as the other is used to attach the RHT as well great


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Mon Mar 15, 2010 9:30 am

I forgot the :photoman: with the cowl in





Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Mon Mar 15, 2010 9:46 am

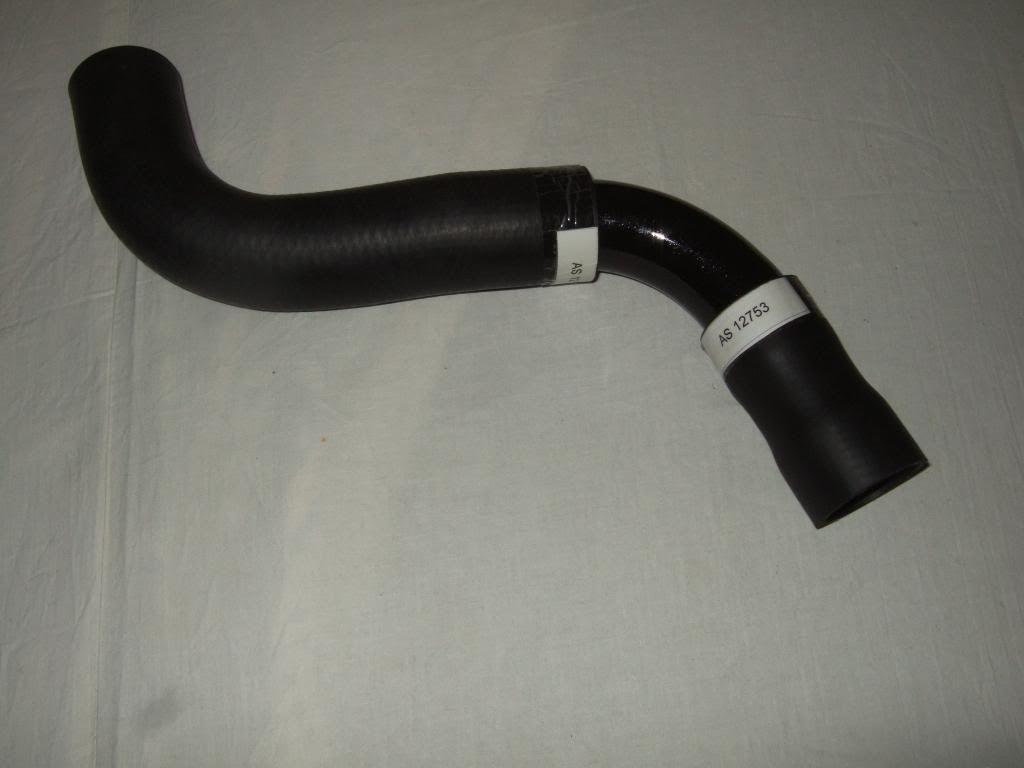

Connecting the Water Pump to the Radiator

Well, this is a nice tricky job Exclamation swear

Before you put the rad etc back in connect the following to the Water Pump



Secure the Jubilee clip



Next I put the other end on the Radiator, before tightening it onto the rad tighten the other end on the elbow. Then tighten the end onto the rad. I tucked my brake hose out the way for the sake of the :photoman:



Lastly tighten the other end of the S pipe onto the other end of the elbow



Leave this one till last as you have to bend the pipe a lot to get it on the rad, also as you can see I have had to trim the supplied pipe.


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Tue Mar 16, 2010 5:53 am

Removal of Heater & Exhaust Manifolds

I started off just changing the 3 hoses near the heater all come from the bulkhead, 1 is the L H feed pipe and heater radiator inlet the other is between the radiator outlet and rear return pipe then the the short one near the manifolds is from the feed pipe to the water control valve.

:photoman: below











Next off with the manifolds so I could detail the engine, the engine is all silver and looks very bland and according to the JCNA Guide (no Im not 4n41 nor is this car going to be concours) but I want to smarten up the engine bay as this engine is a work of art great



Id soaked the studs with penetrating oil and WD40 so they would undo easier and got the brass nuts off spanner

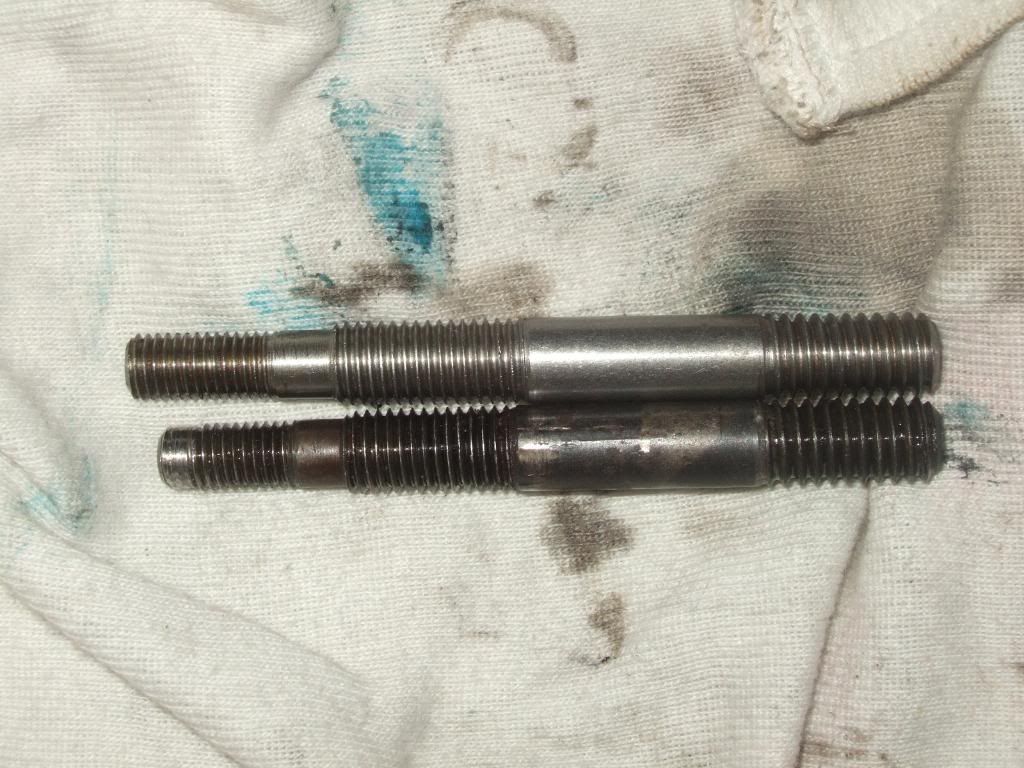

With the first manifold off I double nutted the studs and got them out



With the manifolds off the fun began swear awkward shaped objects 6 studs still to remove and they were rusted in swear



Finally got them out jump4joy

Not bothering getting the manifolds recoated as when I upgrade I will be getting a sports exhaust and manifold loadsamoney


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Wed Mar 17, 2010 5:59 am

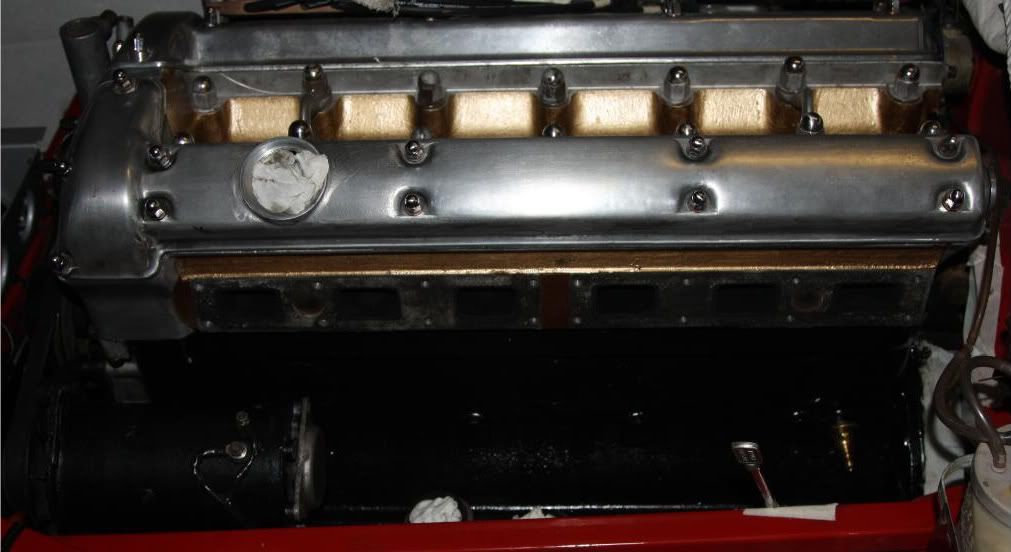

Engine Detailing

Started with a bland engine awman



I set to work, with the manifolds off I taped up and did the side and the gulley



I haven't done up the sides off the gulley yet as the head studs arent off yet.



Block has had a fresh coat of black, and also a proper Brass drain tap fitted spanner

Looking better already grin


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Sun Mar 21, 2010 10:57 pm

Engine Detailing and Sump Removal (Well I tried) swear

Well its been a few days since the last update

I've polished up the breather and fitted that back on - just need the stud that goes in at 45 degrees then the coil can be fitted Exclamation



I tried to remove the inlet manifolds so I could do the detailing on the head but the there were plenty of parts coming from the carbs in the way so I just got the nuts off and pulled the manifolds back so I could tape them and do the gold detailing. I also took the breather pipe (more about that in the next update) off and cleaned up the inlet manifolds. As they had been sprayed silver nuts and all awman

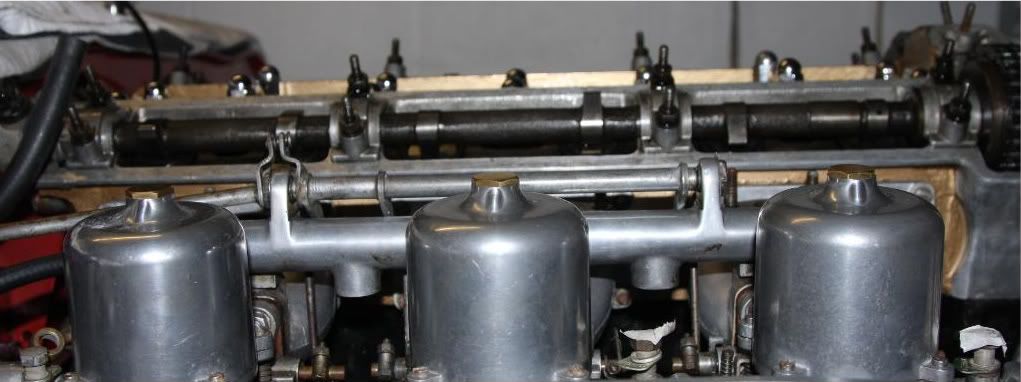

Next I have taken both Cam Covers off spent about 3hrs polishing each but they still looked dull pullhair Im looking Into getting them proffesionally polished great







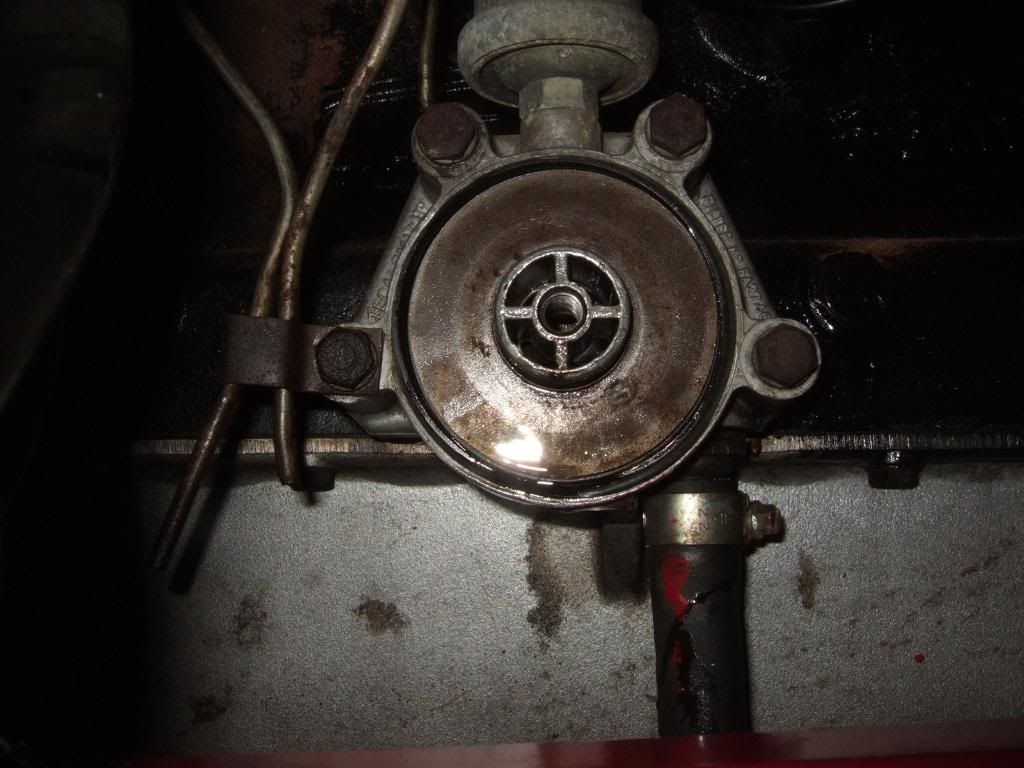

Seeing the dark oil in the camshaft gullies I decided to drop the oil as this was a job for the winter anyway. Once this was out the filter, oil hose (both to be changed) came off as well, as did the filter head with the oil pressure transmitter attached.



As I am going to paint the block this side as well.
With the oil being burnt and remember the crud which was behind the breather gauze at the top of the engine I thought it would be a good time to drop the sump after unding the 26 bolts going into the block and undoing the 4 nuts holding it to the timing plate at the front. It decided it didnt want to come off.

1. The plate at the back wasnt letting it down at the rear. This holds the 2 torsion bars apart.
2. The the Damper wheel was in the way. Again a lot of work to remove this.

So yesterday afternoon I was all afternoon on my back cleaning the sum with POR 15 Marine Clean it has come up cleaner but I cant access the whole sump so only 95% cleaned Sad The next fun bit is going to change the gaskets with Hylomar applied whilst in situ.



Manifolds are ready to go back on when the gaskets are fitted to the sump, all new studs fitted to the head and manifolds and new gaskets all present and correct. good idea

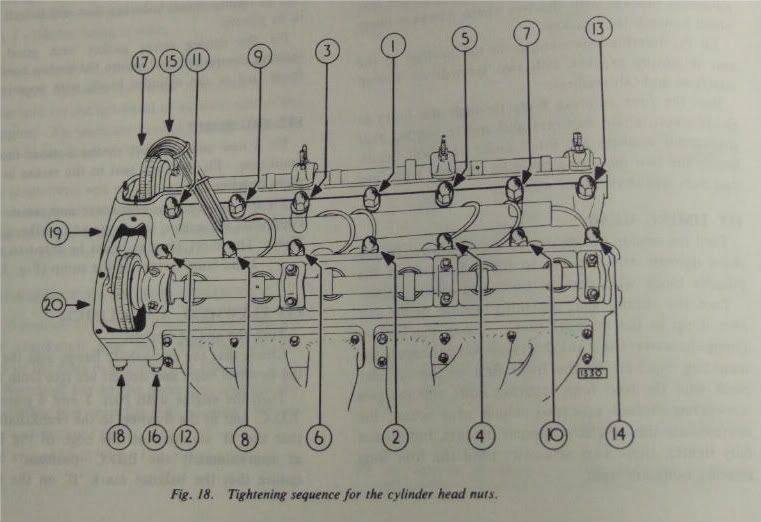

New doomed nuts are now on all tightened and torqued in the correct order on the head.






The other side of the engine at the moment



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G


Last edited by Car-Nut on Wed May 11, 2011 7:19 am; edited 1 time in total
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Tue Mar 23, 2010 10:10 am

RHT Re-Fit

The RHT had been sat on towels on top of the sheet over my car for a while now so this evening.
I fitted it to the RHT Bracket and connected up the Otter switch and the overflow pipe..



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Thu Mar 25, 2010 5:54 am

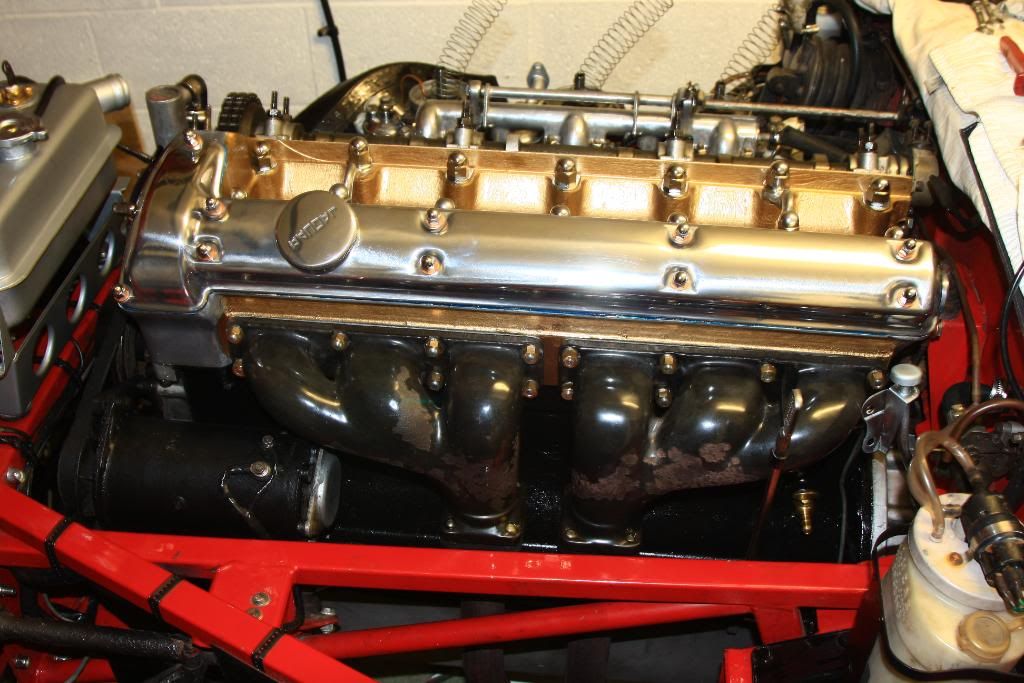

Refitting Manifolds & Exhausts

After all the problems with the sump when trying to remove it, which is more or less impossible in situ, I gave it a good external clean new gaskets and plenty of Hylomar and refitted it. I also changed the old sump plug for a magneetic one and painted the oil return pipe and sealed the gasket there again with Hylomar. good idea



I then cleaned the bulkhead up removed the windscreen washer bottle currently plastic needs relacing with a glass one but at £165 its gonna have to wait other things are taking priority on the car at the moment. Anyway I removed the bracket sanded it down repainted it and new foam and refitted. I then Fitted the new hose to the left of it and refitted the manifolds on the new studs with nice new shinney polishing brass nuts. With those fitted
I connected up the down pipes. For some reason at first the rear one wouldnt connect it was like it had grown an inch swear

After a bit of persussion it was on hurray



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G


Last edited by Car-Nut on Sat Mar 27, 2010 10:06 am; edited 1 time in total
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Sat Mar 27, 2010 9:42 am

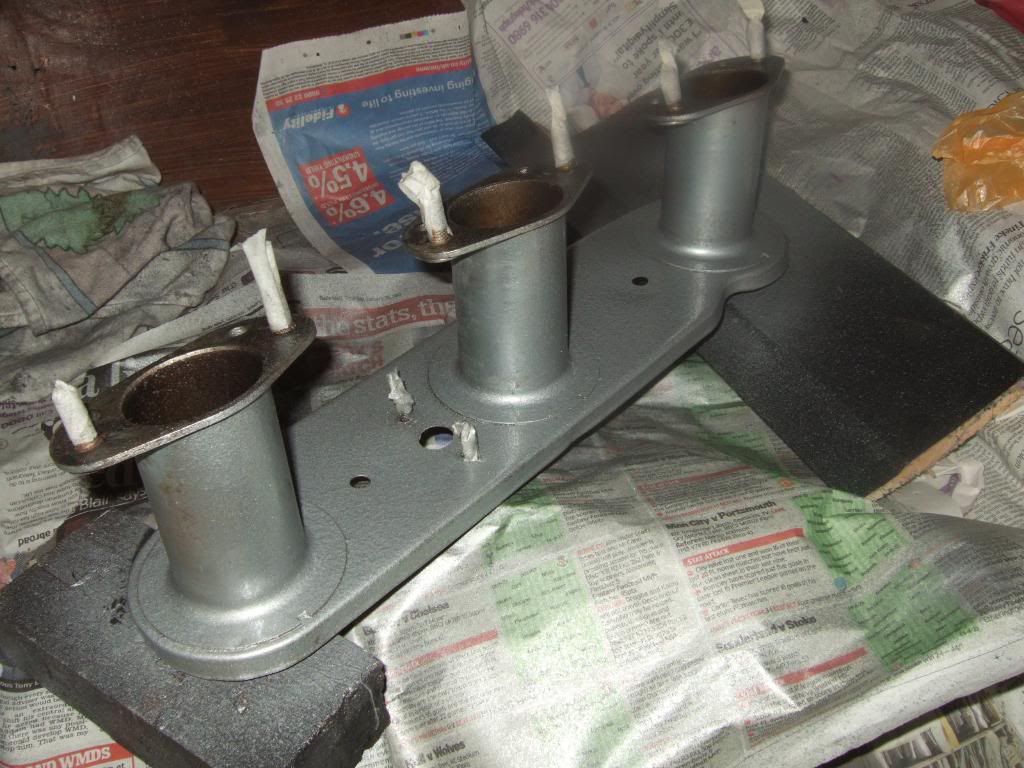

Fitting Water Pump Return Pipe (WPRP) & Breather Hose

The first WPRP I received was 3\4 " short so now my new one has been made and has arrived I got it fitted.

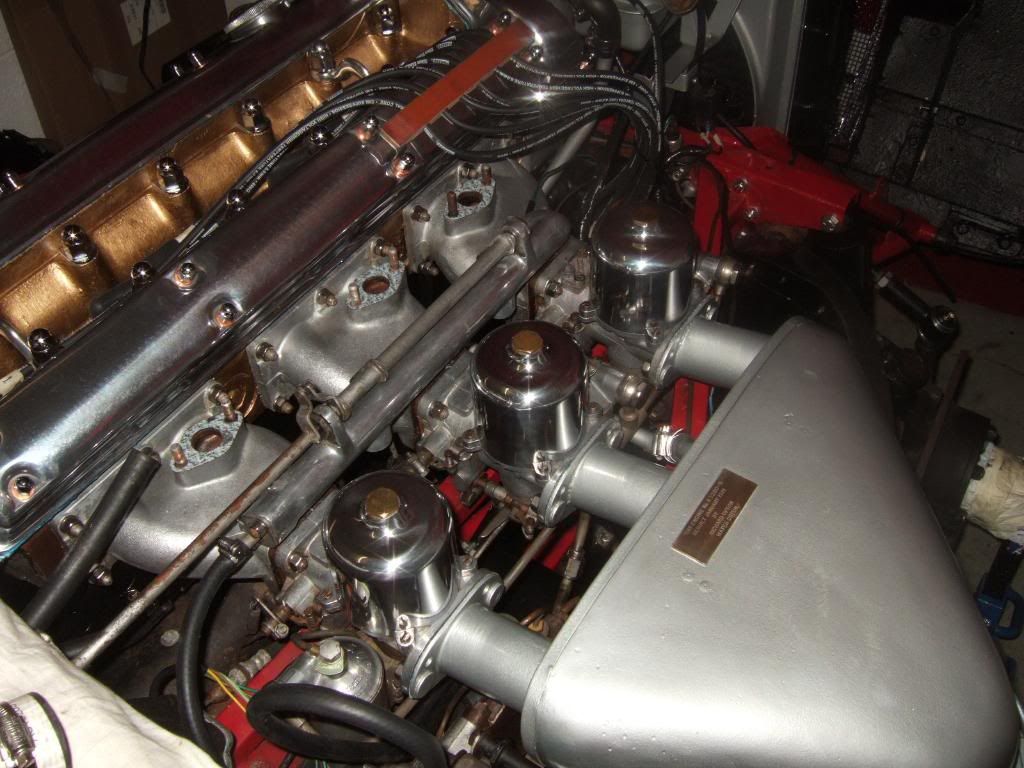

After this was done I tightened up all the inlet nuts replacing with new S/S nuts unfortuantely I couldnt remove them to change the gaskets.
Looking better with the gold detail behind them Smile



As Im waiting for the water pipe back back from the machine shop, two of the bolts broke off in the blanking plate swear I decided to take the intake trumpets off as they had been sprayed badly before, these have just had the first coat.



Also I've now got the breather hose on.



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Sat Mar 27, 2010 9:58 am

Re-Torquing the Camshaft Covers

After spending 3hrs on each cam cover and there was no difference, I made a phone call to some local polishers £20 the pair, it didnt seem worth my while doing it myself Exclamation Exclamation

I dropped them off Tuesday and collected them today with the dash pts and the elbow the thermostat goes in
£30 the lot all 6 pieces grin

First of all I cleaned the surface with POR 15 Marine Clean to remove any oil and grease.



Then I applied a layer of Gasket Sealer (Hylomar) spread it out a bit, placed the gasket on it and then put another layer of Hylomar on.



Let the alcohol evaporate then push the cam cover down.



Put the brass wahers on and those shiney new nuts on did them up finger tight, leave it a while, wipe off any excess sealant, then torque
down to the correct tightness. Quick polish with a nice dry cloth to get the finger prints off polishing

Repeat for the other side



goodjob


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Wed Mar 31, 2010 8:30 am

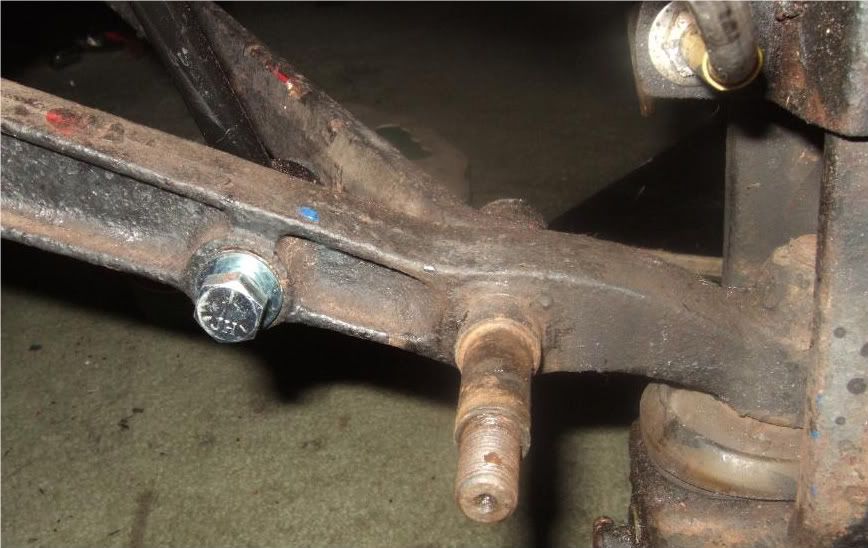

Swapping out Dampers

This is quite a straight forward job, just a case of undoing spanner 2 nuts really.



Theres a castle nut on the lower wishbone bolt held in place with a split pin, and on the picture frame at the top at the top a large bolt going through the Picture frame these can moved while the car is jacked up or standing onits wheels

With the damper removed I cleaned up the bolt with the sleeve still on the bolt.



Put the new damper in place, and tighten up the bolts. Not fully though do that when the full load is on the car.



The IFS is now starting to look better with the Front ARB, Dampers, TRE done unfortunately we ran out of winter so the the full IFS overhaul will now go top of the list for next wnter Wink


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Wed Mar 31, 2010 8:37 am

Refitting the Bonnet Tensioner Springs

I took these off back in January so I could have the bonnet fully open, but to be honest
once they were off I knew they weren't going back on without being cleaned up Exclamation

Before:



After:



I think they needed a wipe really before the :photoman: was taken as the black looks
two tone where they have been handled with my greasy gloves Sad


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Wed Mar 31, 2010 8:46 am

Refitting the Heater Box & Hoses

After putting the (charged) battery back in, in a new tray with overflow pipe as it didnt have one before.

I then bolted the Heater Box to the bulkhead 4 bolts nice and simlple Smile

Then the new hoses the lower: elbow hose between heater radiator outlet and rear return pipe.
Then the upper: elbow hose between L. H. feed pipe and radiator inlet



The short hose: elbow hose between R. H. feed pipe and water control valve



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Thu Apr 08, 2010 6:23 am

Ready for the road, nearly!

update

I have my final check list done and am doing the last few things before it hits the road he he car

After getting the polished parts back I next had to fit the dash pots with air intake truumpets refurbed and all S/S nuts replaced.



So with those fitted and topped up Smile I put the front wheels back on and dropped it down.
When the car had taken all the weight I tightened spanner all the suspension parts I'd touched:

Front ARB
Drop Links
Front Dampers



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Thu Apr 08, 2010 6:39 am

Breather Pipe

About 2 weeks ago I took off the breather pipe to take to the polishers but when taking the 48yr old blanking plate off, 2 of the 3 bolts that was holding the blanking plate to the pipe sheared off swear

After consulting Andy at Hutsons he advised me to send it to it to him and he would drill it out and re-tap it.

With Stoneleigh that wkd the job got put back to the beginning of the following week then when it got sent out the courrier delivered it a day late so I couldnt get it to the polishers till easter friday after my wife collecting it yesterday it got fitted last night Very Happy



New gaskets on top of the inlet manifold, when fitted the hose was connected up again.

I also fitted the elbow with new gasket and S/S nuts

With the blanking plate fitted with new bolts and cork gasket it looked tatty... Sad



After the sealant had set I trimmed up the cork



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Tue Apr 13, 2010 7:37 am

Getting the final Tweeks done

Well I thought Id best update everyone from the week-end

So on getting the car finally finnished for the test drive this afternoon



Good News it fired up first time but there were a few water leaks from the little pipes near the bulkhead that go on to the heater easily sorted. Smile

One strange issue I did have before start up was the HT leads wouldnt reach when going over the elbow to clip the dissy cap on no matter what I did I couldnt get the dissy cap on with all leads plugged in after sorting out no 5, no 4 was still and issue :? In the the end I threaded them through underneath as a temporary measure so I could test drive. As I have polished had the cam covers polished I would now like to run them between them the top of the cam covers and over the top. They are currently in the wooden brace over the cam, Ive tried removing the ends so the leads can be pulled out. But no joy if you know what the process is to get one of the the ends off the HT lead please advise Question (PM me)

Did a test run and all was fine, got home and as advised by a friend the overflow pipe overflowed :wink:

On checking round under the bonnet I noticed two things:

1) The fan hadnt kicked in Shocked
2) There was a splutter of oil on the breather pipe.

I didnt take to much notice and walked up to my garage to get a socket, on returning I noticed what I thought was hair on the cam cover round the domed nut I went to wipe it off. But:!: Yep you guessed it a crack Sad .

See pic below.



Not happy after a winter of HARD work, but these things happen, part of the learning process awman

swear swear pale


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G


Last edited by Car-Nut on Tue Apr 13, 2010 8:17 am; edited 1 time in total
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Tue Apr 13, 2010 7:50 am

The Outcome

After bouncing my problem off some very knowledgeable E-Type guys I had a few options:

1) Silicone Sealer put a smudge over the crack and let it go off for 24hrs
2) Ali Welding, get this done underneath.
3) Repair from the underneath and silicon sealer.

Well after looking at the engine this morning there was no oil on the underneath of the bonnet and only a little on the side of the sump which I presummed had run down also there was like a little spit on the breather pipe. Sad My shinny pipe Exclamation
Im thinking when the car stopped completely and there was no cold air coming in the engine the fracture happened Question Question



With the nut off this is the extent of the damage from the top....



With a newly polished cam cover I didnt want a smudge of Blue Hylomar there it would shout at me everytime I opened the bonnet. So I have decided to pull the cover fix it from and underneath and re seal the cover.

Strangely enough three cam cover gaskets came in my gasket set... Spookey Exclamation

Underneath



Hard & Fast nearly set



Head and cam cover cleaned, new washers sorted all ready to go back together tomorrow..... Smile

Conclusion: Ive now been advised I or the previous owner over torqued the cover and cracked it and when the cam cover got hot it expanded and..... well the rest is History pullhair

The first time I fitted this the cam cover was perfect no leaks I hope this time its the same Exclamation

Just the fan to sort Exclamation Im not very elecrical and know who man who is, who has kindley offered to come over Wednesday to help me hurray


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Tue Apr 13, 2010 7:53 am

Cam Cover Guide

Fixing and re sitting the Fractured Air Intake Cam Cover

Im doing a DIY Guide on this so please go to the:

Arrow DIY & Servicing Guides Forum Arrow Guide to Fix a Fractured Cam Cover Embarassed


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G


Last edited by Car-Nut on Mon May 03, 2010 10:19 pm; edited 1 time in total
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Thu Apr 22, 2010 6:21 am

Overheating issues

Not to much to report on the car at the moment plus my time for working on it has reduced as I now have a new job Exclamation

Took the car to the petrol station the other day and checked the tyres for air on returning home my water gauge was on 90.c and the fan hadnt kicked in Sad

After one of my E-Type friends came over to analyse the problem who is a bit of an electrical whizz he diagnosed the problem to be the new relay as 12v wasnt running through it....

So at the moment the old is in situ but I will wiring up a lucas 6ra relay with w1, w2, c1, c2, c3

Also its developed a blow between the exhaust manifold and down pipe on the right this will be stripped down at the week-end

I sent my HT leads back to Rob Beere as they were to short he has sent me back some longer ones so the list is growing for Saturday grin

Will do update after the week-end :photoman:

If you have any comments on my project please feel free to add to this thread highfive


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Fri Apr 30, 2010 5:49 am

update

Cleaned up the area yesterday and had a fumble (excuse the expression) around the manifold area to find the two back nuts had gone and the two front were loose Shocked hence my new blow.

On putting both sides back together I put some loctite on the nuts so hopefully it wont be happening again just need two new nuts to replace the fronts which are now old nuts, which look out of place against all my other shinny ones Smile


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Mon May 03, 2010 10:10 pm

New HT Leads

After returning my HT leads back to Rob Beere Racing and recieving my new ones.

I fitted them yesterday, routing them correctly:



They now look much tidier and showing off my polished Ali great


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Mon May 10, 2010 1:44 am

Cam Cover Weep

After a bit of driving locally in the old girl car last weekend when I got home there was a weep from the cam cover near the fracture, nothing major but enough to annoy me and need attention.



With the cover off it looks like theres been a reaction as the Hylomar has split :? Sad



I was expecting it to of come off as there was a leak again.

The Hylomar had just split in pieces I dont know and the putty was so easy to remove I just put a stanley knife blade under it and flicked it off in pieces. I think it had cracked with the expansion and contraction of the cam cover.

The head is now cleaned up of the old gasket as is the cam cover and I have now sourced an Aluminium Welder less than a mile from me so I will take it down this week Smile

Hopefully that will sort it once and for all.. Exclamation Exclamation

The covers not been off in 30yrs now twice in just over a month pullhair


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G


Last edited by Car-Nut on Tue Jul 27, 2010 1:06 am; edited 1 time in total
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Fri May 14, 2010 5:34 am

Cylinder Head Stud Change

While the cover was off again Exclamation

Ive decided to change my damaged stud on the cam cover as its off, Ive ordered one from Hutsons



Put two nuts on the top thread didnt tightened the top one right down gave it a good few whacks, WD40, then tightened the top nut down.

VOILA grin



The offending item smoker



Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Car-Nut
Admin
avatar

Posts : 2949
Join date : 2009-11-16
Age : 50
Location : E. Lancashire : UK

PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades   Tue May 18, 2010 6:22 am

Fitting the Stud

The new supplied was lightly longer than what I think is the original Exclamation
I'm sure the engine oil will soon colour it



Anyway with a bit of loctite on the bottom thread I screwed it in and tightened it up.



Job done grin

My cam cover should be in the wifes boot as she collected it on the way to clinic tonight so when shes home from work I'll check out the workmanship from the welders I dont know


Clive
1970 4.2 420G -17th from last RHD -Reggie
1970 4.2 420G -13th from last RHD -Ronnie
Symposium Enquiries to The Global Team  Arrow info@lancashireclassicjaguarhire.co.uk
------------------------------------------------------------------------------------------------------
Worldwide Supplier of Parts for Jaguar MK10 420G
Back to top Go down
http://www.jaguarmk10420gsymposium.com/
Sponsored content




PostSubject: Re: Baselining - 369 HBF - 860871 - Before the Upgrades

Back to top Go down

Baselining - 369 HBF - 860871 - Before the Upgrades
View previous topic View next topic Back to top
Page 3 of 5Go to page : Previous  1, 2, 3, 4, 5  Next
 Similar topics
-
» The Iraq Stock Exchange Upgrades to NASDAQ OMX's X-Stream Technology

Permissions in this forum:You cannot reply to topics in this forum
The Jaguar Mk10 & 420G Owners Symposium :: More Cars From Sir William Lyons Production Line :: Edward - 1962 E-Type S1 3.8 FHC - 860871-
Jump to:
